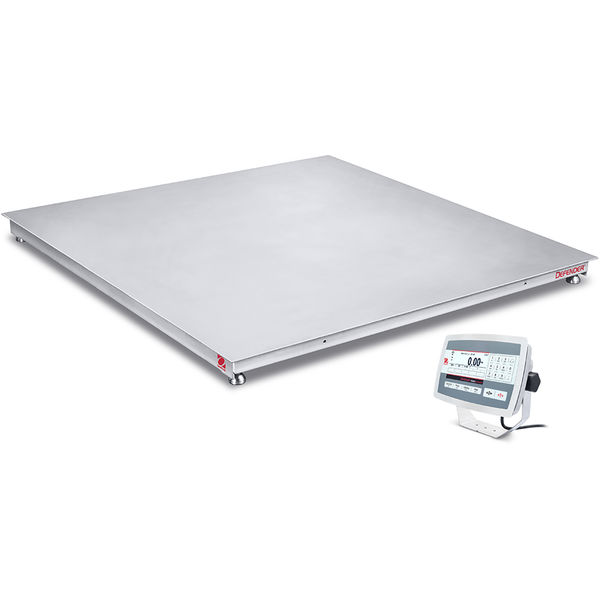

Defender™ 5000 Washdown Floor Scales - i-DF52

Floor Scales for Standard Industrial Applications
Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold and other modes. Stainless steel bases include IP68 load cells for wet areas. Ramps and mounting plates are available.

Request a Quote

Magic Spreadsheet
Features
Defender™ 5000 Washdown Floor Scales - i-DF52 Features

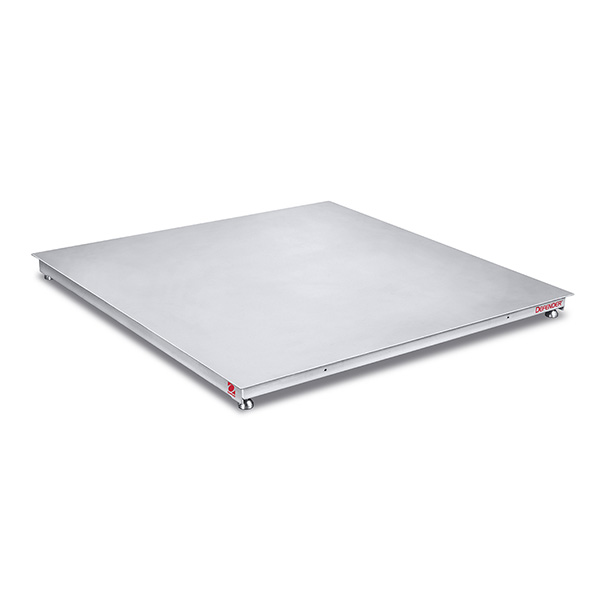

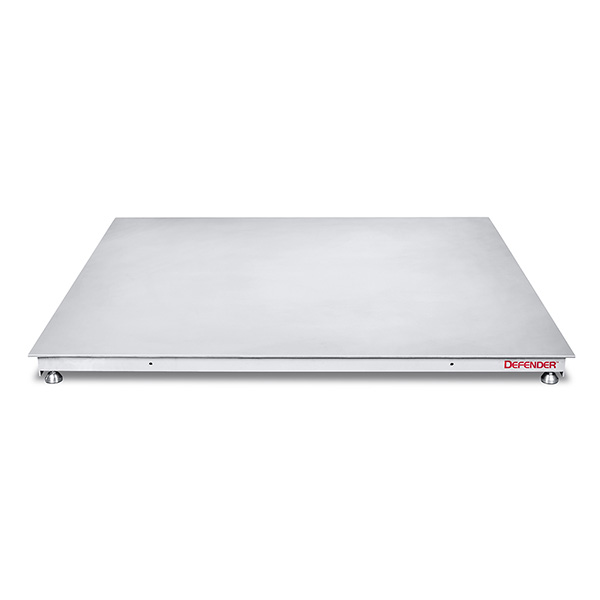

304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft and 4x4 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.

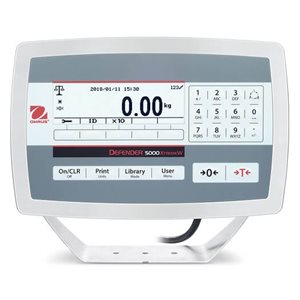

Equipped with a new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts to guide you through operation.
Models
Defender™ 5000 Washdown Floor Scales - i-DF52 Models
Compare Models
Filter_Models
Maximum Capacity
Show More
Readability
Show More
Readability (Certified)
Show More
Platform Size
Show More
Battery Life
Show More
Legal for Trade
Show More
Compare Models
Models #: DF52XW2500C1R
MSRP :


Add to Comparison Remove Comparison
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Models #: DF52XW2500C1L
MSRP :


Add to Comparison Remove Comparison
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Models #: DF52XW5000C1L
MSRP :


Add to Comparison Remove Comparison
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Generate a Quote Request a Quote
Add To Quote List Remove From Quote List
Details
Defender™ 5000 Washdown Floor Scales - i-DF52 Product Details
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304 stainless steel IP68 indicator, 5 mm/0.196 in. fixed top plate, stainless steel platform, IP68 stainless steel junction box with side access, IP68 load cells, stainless steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
